THE ORIGINAL LAYOUT, RE-CREATED WITH CARE.

Original classic-car wiring diagrams were designed for the owners and mechanics of their time. Their familiar layouts and simple symbols are part of the character of the cars themselves.
Heritage Car Wiring preserves that character while completely redrawing the artwork in clear, high-resolution vector form, with accurate wire and tracer colours.

The original character is retained. The clarity is brought up to modern standards.

THE LAYOUT YOU KNOW
THE CLARITY YOU NEED

ORIGINAL

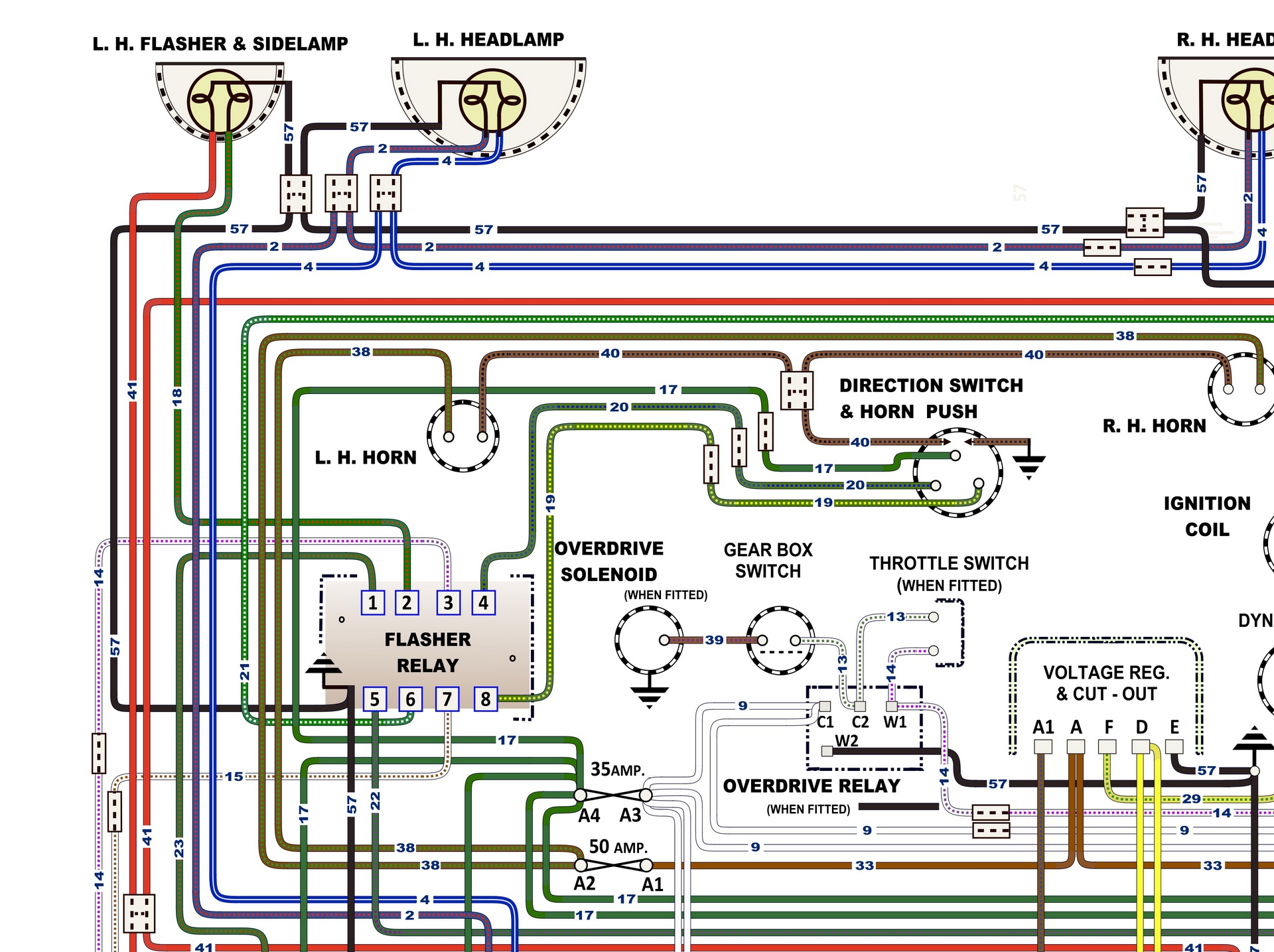

RE-CREATED

MADE FOR THE WORKSHOP. WORTH KEEPING.

ACCURATE COLOUR

Original wire and tracer colours are faithfully reproduced, making the diagrams easy to follow when working on the car.

HIGH-QUALITY PRINT

Printed on high-quality art paper to give the diagram the clarity and presence it deserves.

BUILT TO LAST

Designed to be useful in the workshop and good enough to frame, so it can remain part of the car's history when the work is done.

THE PRINT YOU ACTUALLY USE

Every Heritage Car Wiring diagram is produced as a high-quality physical print on art paper, chosen to reproduce the fine detail and original wire colours clearly.
The diagrams are supplied at a generous minimum size so they can be read comfortably in the workshop. Larger sizes can be offered where the format allows.
Use one as a practical workshop reference, place it in a clear protective sleeve for everyday use, or frame it as a piece of automotive wall art.

HIGH-QUALITY ART PAPER

Fine detail and strong colour reproduction.

A3 MINIMUM

A useful working size rather than a small decorative print.

WORKSHOP OR WALL

Use it at the car, protect it in a clear sleeve, or frame it for display.

CLASSIC CARS DESERVE BETTER THAN A PHOTOCOPY.

The original information deserves to be preserved with the same care as the cars themselves.

PRESERVING THE DIAGRAMS THAT HELPED KEEP THESE CARS ON THE ROAD

Every classic car has its own story, and the original Owner Manual is part of that story. Among its pages are the wiring diagrams that once helped owners understand, maintain and repair their cars.
Today, many of those diagrams survive as ageing paper, photocopies or low-quality reproductions. Yet the information they contain remains as relevant to the enthusiast restoring a car today as it was when the car was new.
Heritage Car Wiring was created to give these diagrams the treatment they deserve.
We carefully redraw these original diagrams without losing the character that made them familiar in the first place. The layout, symbols and original colour coding remain part of the finished work.
The result is a physical print that can be used in the workshop, kept with the car, or displayed as a piece of automotive history.

View the Diagrams
